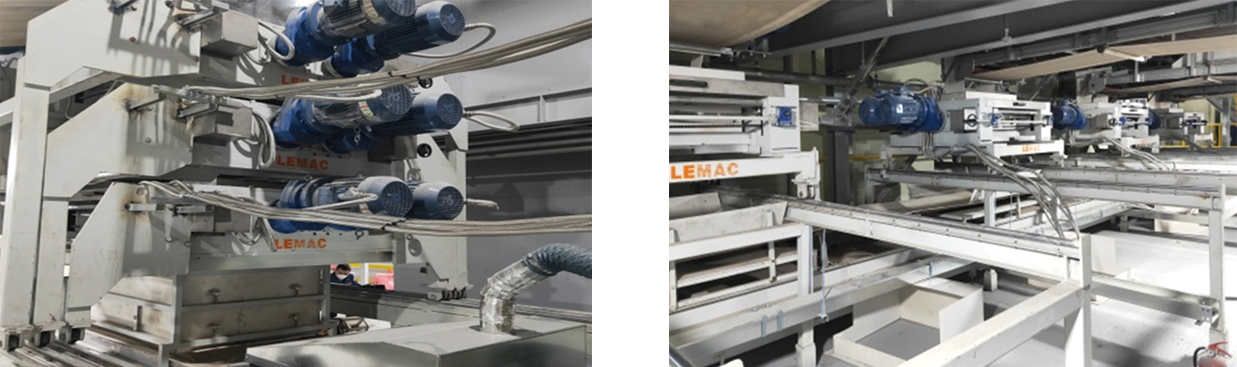

Roll Scatter Machine
1. It is used to produce multi-color slabs. There are two pairs of rollers are dispersed at high speed, and the roll opening is adjustable in accordance with the production process.
2. The inner side of the roller is wrapped with wear resistant and antifouling material outside the core roller, and each roller is equipped with a 2.2kw motor and gear box.
| Specification/ Model | Roller size mm | Roller speed r/min | Gap adustment mm | Power kw | Roller material |
| Two Roller lump breaker | Φ350×800 | 0~803.7 | 0~55 | 14 | Steel core coated by stone |
| Two Roller lump breaker | Φ350×1200 | 0~803.7 | 0~55 | 28 | Steel core coated by stone |
| Six Roller lump breaker | Φ350×1200 | 0~803.7 | 0~55 | 42 | Steel core coated by stone |
